Product Features:

ELECTRICAL FEATURES

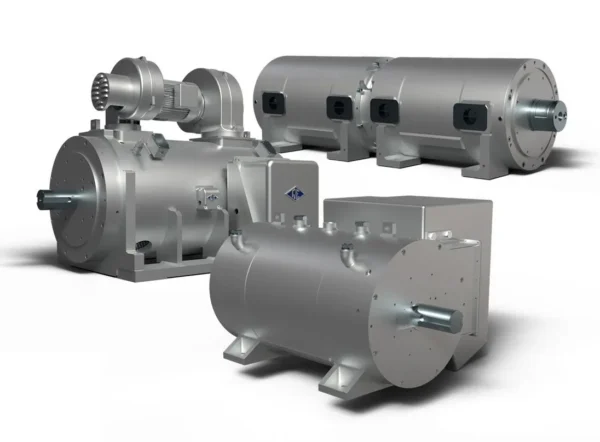

• Available Motor Products High Speed Liquid Cooled Motors; High Speed Air Cooled Motors
• Design Type AC Induction; Variable Speed
• Power Up to 1500 HP
• Speed Up to 50,000 rpm *Higher speeds available – consult factory
• Voltage Up to 600 volts
• Phase 3-Phase
• Frequency Up to 2000 Hz
• Configuration 2-pole or 4-pole
• Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
• Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

MECHANICAL FEATURES

• Frame NEMA frame 56 through 449; IEC frame 90 through 315; Reuland liquid cooled frames 140S thru 580L; Square frames and custom frames are also available, consult factory.
• Construction Cast iron or Heavy-duty steel frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
• Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Auxiliary Fan Cooled (A-TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP), Open Drip Proof Fan Cooled (DPFC); Open Drip Proof Auxiliary Fan Cooled (A-DPFC); Water Cooled (TEWC);
• Oil Cooled (TELCW)
• Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
• Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet; Oil Cooled
• Balance Precision.
• Insulation Super Class H insulation with Vacuum Impregnation (VPI).
• Mounting Footed; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
• Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.
