Product Description:

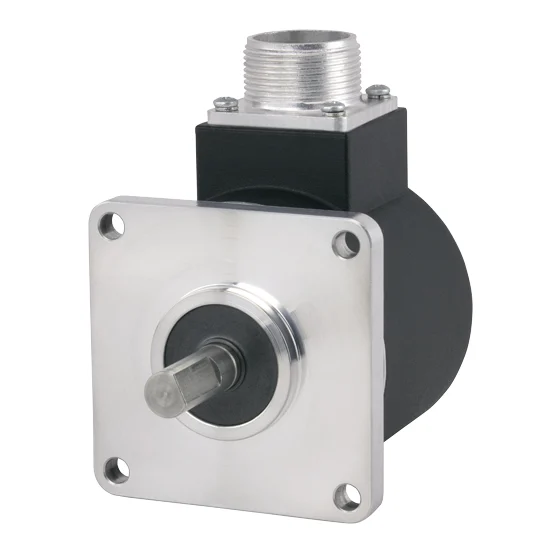

The Model 25SF 2.5″ Accu-Coder® shaft encoder offers the performance advantages of the programmable Model 25SP, but in a fixed resolution version. The versatile Model 25SF offers 32 different waveform options, 6 output types, and any resolution from 1 to 65,536 CPR. Specifically designed for the challenges of an industrial environment, the Model 25SF features a rugged, industrial housing and comes standard with dual bearings rated 80 lbs axial or radial. Offering shaft sizes up to 10 mm, multiple mounting options, and sealing up to IP67, this encoder can take on your demanding applications.
