Product Features:

Electrical Features

• Design Type AC Induction; Variable Speed
• Power 1/10 – 350 HP
• Speed Up to 30,000 rpm
• Voltage Up to 600 volts
• Phase 3-Phase
• Frequency Up to 2000 Hz
• Volts/Herts Range Per Customer Requirements
• Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
• Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

• Frame Reuland frame 315 through 532 for small motors; NEMA frame 56 through 449 for large motors; IEC frame 90 through 315; square frames and custom frames are also available, consult factory.
• Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.

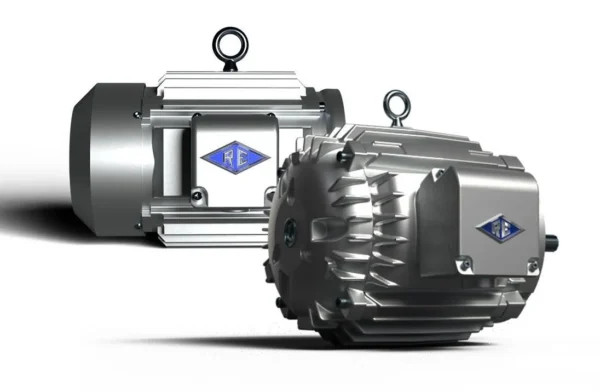

• Enclosures Fan-Cooled (Totally Enclosed); Auxiliary Fan Cooled (Totally Enclosed); Non-Ventilated (Totally Enclosed); Air-Purged Provisions
• Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
• Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet
• Balance Precision and/or NEMA Standard.
• Insulation Class B, F, H and VPI.
• Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
• Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.
