Product Description:

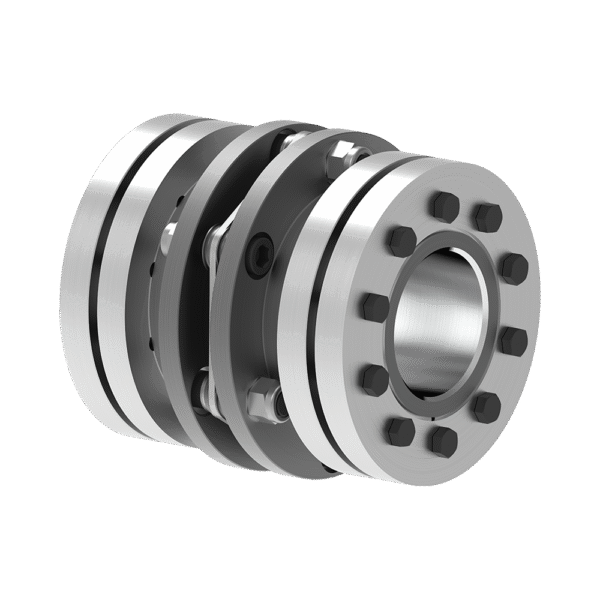

The type RINGFEDER® TND XSX is a torsionally stiff, backlash-free steel disc coupling consisting of two hubs X prepared to be equipped with shrink discs of the series RINGFEDER® RfN 4061 and one disc pack S alternately connected to the hubs by high-strength screws.
Depending on the coupling size, two different disc packs are available:
*Type HD (= High Deflection) for increased compensation capability at occurring shaft misalignments.
*Type HT (= High Torque) with larger power density for higher requirements on transmissible torque.
The single-jointed design with single disc pack compensates for angular and axial shaft misalignments. A permanently backlash-free fixation of the coupling hubs on the shafts to be connected is realized by means of high-quality RINGFEDER® Shrink Discs.
