Product Features:

ELECTRICAL FEATURES

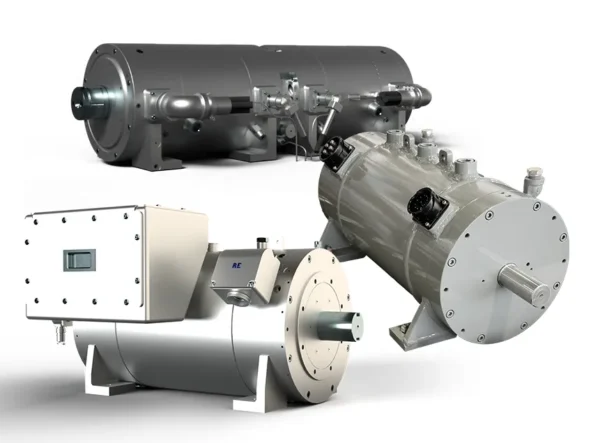

• Design Type Interior Permanent Magnet (IPM); Variable speed
• Power Up to 1000 HP
• Speed Up to 20,000 rpm *Higher speeds available – consult factory
• Voltage Up to 600 volts
• Phase 3-Phase
• Frequency Up to 2000 Hz
• Stator M-19 or M-36 electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
• Rotor M-19 or M-36 electrical steel laminations. Other lamination grades are available upon request. Encapsulated rotor design for ultra-high speeds.
• Magnets High energy neodymium iron-boron
• Control Method Flux vector control

MECHANICAL FEATURES

• Frame Reuland liquid cooled frames 140S thru 360L. Other custom frames and special constructions are available upon request.
• Construction Heavy-duty steel frame and end bells. Consult factory for stainless steel construction and/or custom design.
• Enclosures Water cooled (TEWC), and oil cooled (TELCW)
• Bearings High-Precision, ABEC-7, steel ball, ceramic ball or roller bearings to suit specific applications.
• 8earing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open; Oil Jet; Oil Cooled
• Balance Precision.
• Insulation Class H insulation
• Mounting Footed; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
• Accessories Temperature sensors, brakes, encoders, resolvers, and vibration mounts and sensors.
