Product Description:

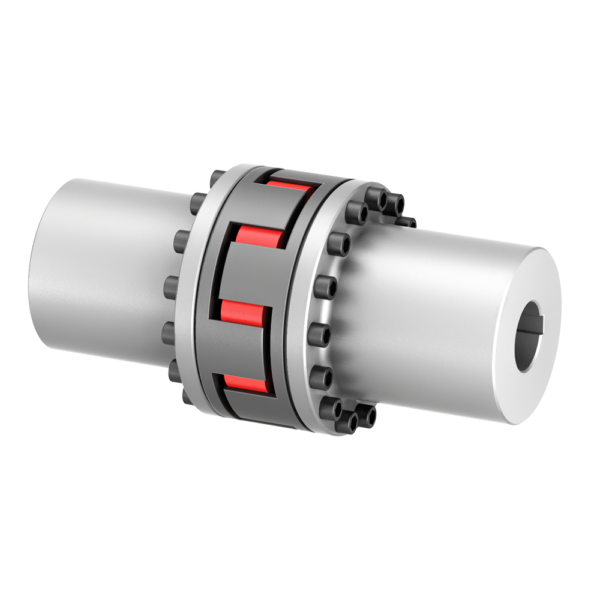

The RINGFEDER® TNS SDDL-5 coupling is a torsionally flexible, fail-safe multi-part claw coupling with long hubs and removable intermediate part comprising the claw rings and the intermediate ring. It balances out angular, radial and axial shaft misalignments within defined limits. The coupling transfers the torque via pressure loadable, elastic buffers of synthetic rubber (Pb) or polyurethane (Vk), as a standard VkR, and are connected to each other to form an elastic intermediate ring. The elastic intermediate ring can cushion impacts and torsional vibrations; it is oil-resistant. Intermediate rings made of Perbunan are electrically conductive. The two-parted construction of both coupling halves allows radial mounting and dismounting of the intermediate part. The intermediate ring can, therefore, be replaced without having to displace the connected machines. When the intermediate part is removed, it is easily possible to check the rotational direction of the drive. The coupling is suitable for use in every direction of rotation and installation position.
