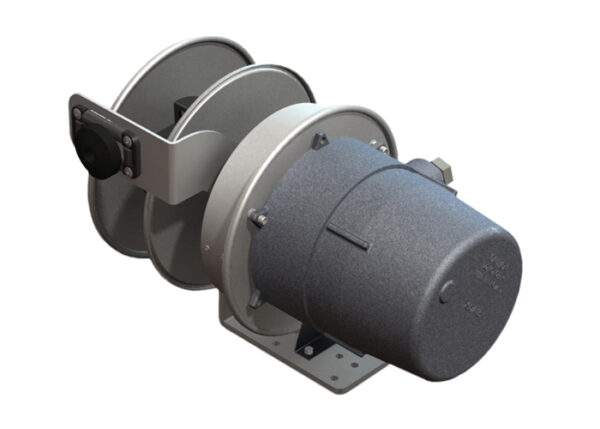

1500 Series Hazardous Location Reel

Product Description:

Hazardous Duty Reels are also commonly referred to as “explosion proof”. They are built with modular “1400 Series” components, coupled with a spark-proof ratchet and hazardous location slip ring housing. Hazardous Location PowerReels are ideal for:

  • Petroleum facilities
  • Waste water treatment plants
  • Grain storage and handling silos
  • Paint booths
  • Underground mines
  • Chemical plants

UL Hazardous Location Listings:

  • 3 and 4 conductor models with cable installed only
  • Class I Division 1, Groups C & D (flammable gases or vapors)
  • Class II Division 1, Groups E, F, & G (combustible dusts)
  • Class III Division 1 (easily-ignitable fibers or flyings)
  • Class I Zone 1: AEx d IIB, EX d IIB
  • Conforms to NEMA 9 and NEMA 4 (IP56) standards

Download Cable Reel Spec Data Sheet PDF

Product Features:

Standard Features

  • SOW-A cable, on all reels
  • Spring activated ratchet
  • 4 roller adjustable cable guide and ball stop
  • Built to UL 508C table 36.1 / NEC Standards
  • 6’ feeder cord on fixed end
  • Indoor or outdoor use
  • 35 amp, 1-4 conductors 600 Volt, 5-12 conductors 250 Volt
  • Rugged fabricated steel and cast aluminum construction
  • Threaded cast aluminum slip ring enclosure
  • Gray epoxy finish on steel parts

Description

Hazardous Duty Reels are also commonly referred to as “explosion proof”. They are built with modular “1400 Series” components, coupled with a spark-proof ratchet and hazardous location slip ring housing. Hazardous Location PowerReels are ideal for:

UL Hazardous Location Listings:
